Electronic 1000KN Rebar Tensile Testing Machine
This horizontal tensile testing machine is designed for comprehensive testing of steel bars and various materials including tension, compression, shearing force, adhesion, peeling force, tear strength, and more. It serves as essential equipment for input quality control (I.Q.C), quality control (Q.C.), physical inspection, mechanics research, and material development across multiple industries.
Compliance Standards
- ASTM D412, ISO 37-2005, JIS K6251, DIN 53504-2009: Tensile Strength & Elongation Test
- ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test
- ASTM D624-00, ISO 34-1: Tearing strength Test
- ASTM D395-03, ISO 815-1: Compression Set Test
- ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D
- ASTM D573, ASTM D865, ISO188 Method B, DIN 53508: High/Low Temperature Test
- ISO 2781(Method A): Density Test
- ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter
- ASTM D1646: Mooney Viscometer

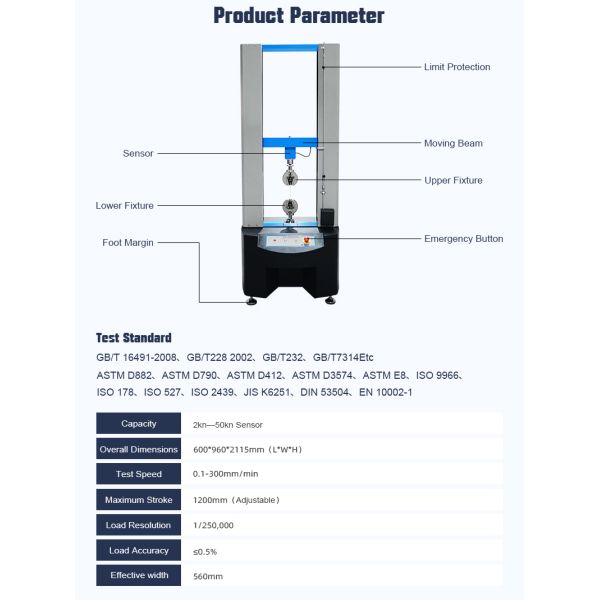

Technical Specifications
| Items |
Specification |
| Sensor |
Celtron load cell |
| Capacity |
1000, 2000, 3000, 5000kg |
| Unit Switchover |
G, KG, N, LB |
| Display Device |
PC |
| Resolution |
1/250,000 |
| Accuracy |
±0.5% |
| Max. Stroke |
1000mm (including fixture) |
| Test Speed |
0.1-300mm/min (adjustable) |
| Motor |
Panaso-nic Servo Motor |
| Screw |
High Precise Ball Screw |
| Elongation Accuracy |
0.001mm |
| Power |
1, AC220V, 50HZ |
| Weight |
Approx. 250kg |
| Accessories |
One set tensile clamp, one set Len-ovo computer, one piece English software CD, one piece operation video CD, one piece English user manual |

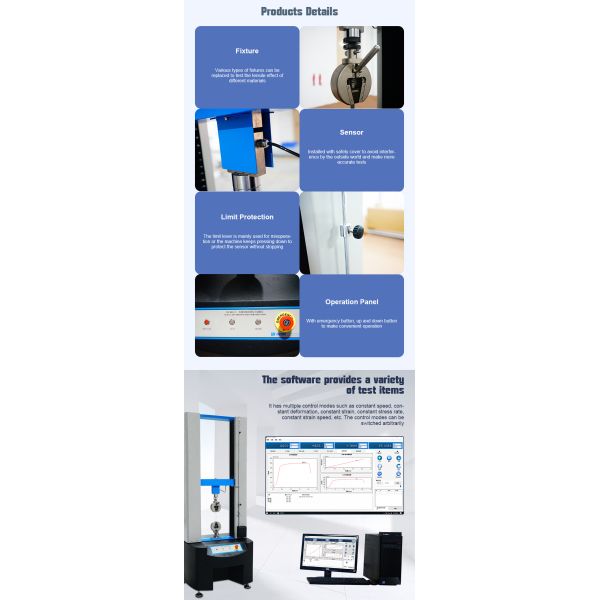

Key Features
- Windows platform with intuitive dialog box parameter settings
- Single-screen operation without screen switching
- Multi-language support: Simplified Chinese, Traditional Chinese, and English
- Customizable test report patterns with direct data display
- Translational and comparative modes for multiple curve data comparison
- Multiple measurement units with imperial and metric switching
- Self-return and auto-correction functions
- Automatic magnification for optimal graphic sizing
Custom Fixture Solutions
Haida provides comprehensive fixture customization services to meet all customer testing requirements and applications.

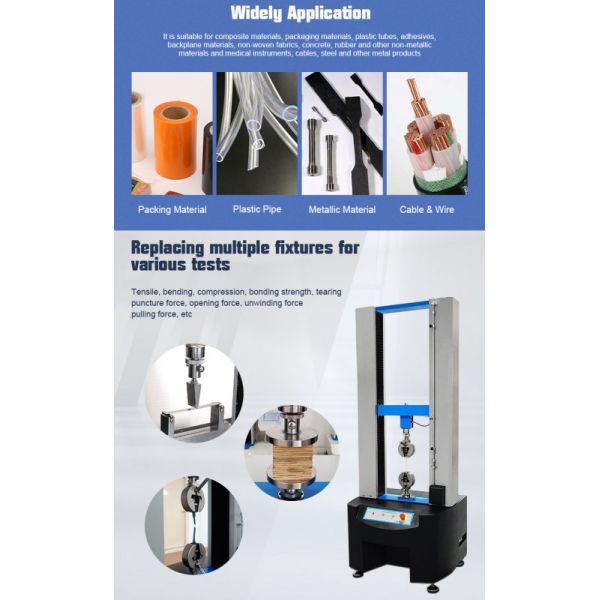

Tensile Testing Applications
Manufacturer Information
HAIDA INTERNATIONAL is a professional manufacturer of various testing equipment with over 20 years of industry experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, serving scientific research units, quality inspection institutions, and academic fields.
