Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery

Protection Class : Ip56

Output current : 30A/60A/100A/150A/300A

Application : Battery Testing

customized support : OEM, ODM

Power factor : > 0.99

Voltage resolution : 0.1mV

Power supply voltage : 380±10% VAC

Max. power feedback efficiency : ≥ 75%

Brand Name : HAIDA

Accuracy : 0.01

Voltage : 380 V

MOQ : 1

Type : Testing Machine

power : /

Place of Origin : Guangdong, China

warranty : 1

Power supply frequency : 50±5% Hz

Single channel voltage range : 0.8V~5V

Voltage accuracy : ± 0.02% F.S

Wiring method : AC three-phase five-wire

Cabinet size (Optional) : 600*850*1030 / 600*800*1980(W*D*H mm)

Contact Now

Product Description
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery

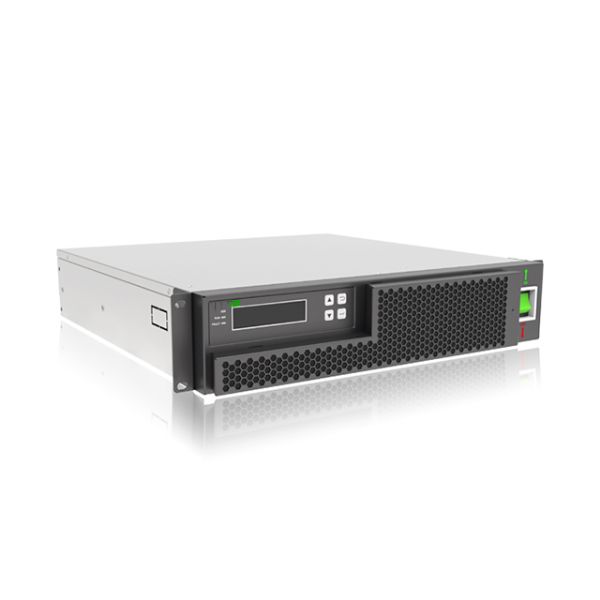

HD-H213-5

Battery Cell Test System
Applied in Li-ion battery, lead acid battery, nickel-cadmium battery testing and quality control, can realize the integration of charge and discharge data monitoring.

Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Specification
AC parameters
Wiring method
Three-phase five-wire system
Power supply voltage
380±10% VAC
Power supply frequency
50±5% Hz
Power factor
> 0.99
Max. power feedback efficiency
≥ 75%
THD
＜5%
DC parameters
Output current
30A/60A/100A/150A/300A
Single channel voltage range
0.8V~5V
Voltage accuracy
± 0.02% F.S
Voltage resolution
0.1mV
Current accuracy
± 0.02% F.S
Current resolution
0.1mA
Current response time
5ms（10%~90% F.S）
Current switching time
10ms（-90%~90% F.S）
Min. Working Condition Simulation Interval
10ms
Upper computer software function
Charging mode
CC, CV, CCCV, CP etc.
discharge mode
CC, CV, CP, CR etc.
Other working mode
Still,Pause,Working condition test, Pulse test,DCIR
Test cut-of condition
Battey voltage, current, time, capacity, temperature
Data export format
Excel、TXT etc.
Time recording interval
10ms
Editable step
Max. 10000
Programmable step
Max. 10000
Nested loop
Max. 10 layers
Software protection
OCP/OVP/UVP/Reverse or wrong connection protection Protection for abnormal communication
Third-party
device integration
Support linkage of temperature box, MTV/MTS,
and pressure sensor
Other parameters
IP grade
IP20
Working temperature
0℃~40℃
Cooling method
Air Cooling
Noise
＜75dB

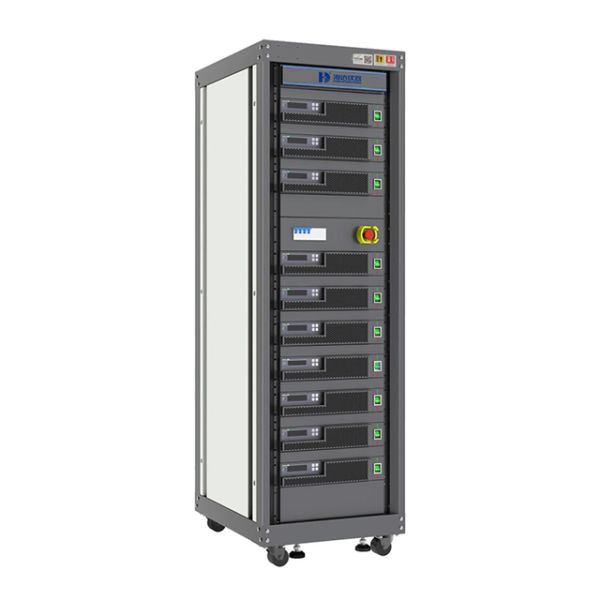

Cabinet size
600*850*1030 / 600*800*1980 （W*D*H mm）
Note: For specific models and parameters,
please refer to the corresponding technical specifications
Functions
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Battery capacity test Charge/discharge test Static/dynamic SOC test Charge retention test
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Cycle life test Temp. performance test High-speed DCIR test
working condition pulse test
Advantages
* Support single battery voltage consistence test

* Support multi-channel charge-discharge curve comparison

* Support multi-channel parallel

* Power factor value up to 0.99

* Anti-reverse connection and data protection

* Battery discharge and energy feedback efficiency ≥90%

* Modular design, easy for maintenance

* Support RS485/CAN communication, baud rate is changeable

* Support DBC import at one-click

* Support user-defined BMS values as control/protection parameters

* BMS voltage and current following test

* User-defined login management rights are supported

Details
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Company Profile
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Our Partners
Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery
Our Advantages
Our Service
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
