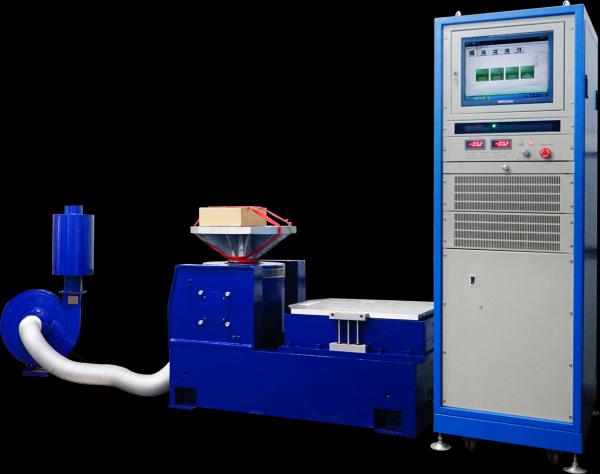

ELECTRO-DYNAMIC RANDOM VIBRATION TEST MACHINE

Product Categories

Haida Equipment Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: ELECTRODYNAMIC RANDOM VIBRATION TEST MACHINE
Brand: Haida
Price: 4 USD

Test time : 0s ~99m99s

Controller type : PLC Touch Screen

Brand Name : Haida

Test sample size : 300*300*50mm

Mesh wire diameter : 50um

Talcum powder amount : 2kg/m³

Chamber material : SUS#304 Stainless steel

Place of Origin : Guangdong, China

Model Number : HD-E706

Price : €4,182.07-5,142.87

MOQ : 1

Cycle time : Adjustable

Door type : Left open door with tempered glass

Mesh hole size : 75um

Power supply : AC380V, 50/60Hz, three phase

Vacuum pump capacity : 60-600 L/H

Fan type : Centrifugal fan

Internal dimension : 600*600*600mm

Airflow speed : No more than 2m/s

External dimension : 1100*900*1650mm

Contact Now

Item		Description
Force (Maximum)	Sine	5000Kg.f peak
	Random	5200Kg.f r.ms
	Shock	10000Kg.f peak
Frequency Range		1~2700 Hz
Max. Displacement		100mm (Peak to Peak)
Max. Velocity		2.2m/s
Max. Acceleration		100G (980 m/s²)
Vibration Direction		Horizontal & Vertical
Armature Diameter		Ф445 mm
Effective Armature Mass		59kg
Table Screw		17×M10
Max. Load Capacity		1000kg
Magnetic Leakage		<10gauss
Axial Vibration Isolation Frequency		2.5HZ
Approx. Dimension		1200mm×790mm×840mm (Head Expander is excluded in this dimension, calculated individually )
Approx. Weight		5500kg (Head Expander is excluded in this dimension, calculated individually )
Power Supply		AC 3-phase 380V, 50/60Hz (can be adjusted as per Brazil requirement)

Manufacturer Profile

Haida specializes in manufacturing high-quality environmental test chambers and testing equipment for industrial applications.
